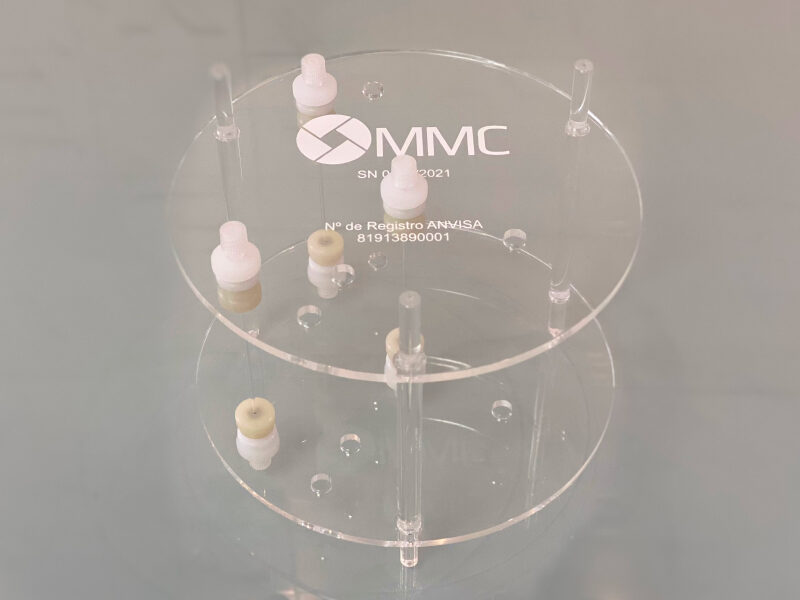

The Phantom TRIPLE LINE Insert is comprised of upper and lower discs, spacer rods, glass tubes and one-way valves, designed to produce three 1 mm diameter parallel lines of marker material, spaced 7.5 cm apart, with fillable tube locations, based on recommendations from the NEMA NU 2 standards publication for performance measurements of the tomographic spatial resolution parameter of scintillation cameras.

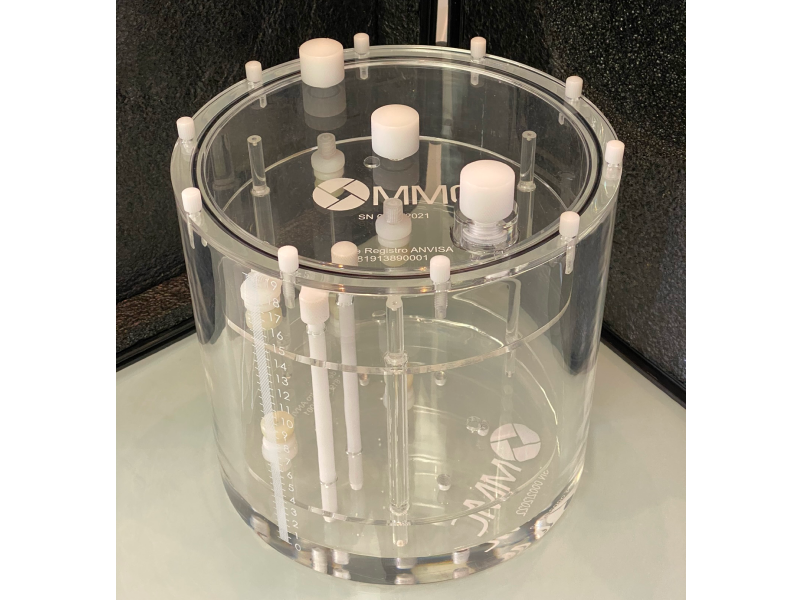

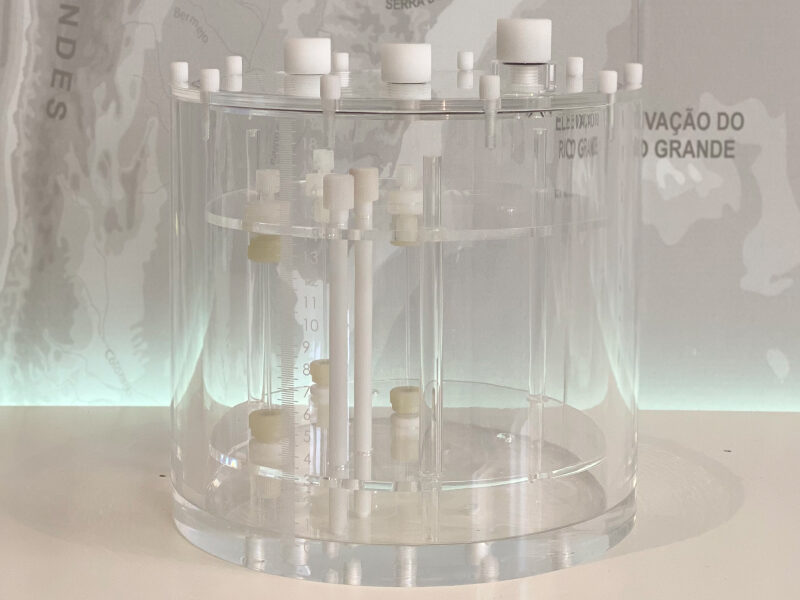

PS.: The Triple Line Insert in the water spatial resolution test is used in conjunction with the body and lid of the Phantom Jaszczak.
INDICATION FOR USE
- Acceptance test;
- Quality assurance and control;
- Error assessment in the center of rotation;
- Assessment of changes in the radius of rotation in spatial resolution;
- Measurement of spatial resolution in air and water, if mounted on a cylinder;
- Quantitative evaluation of reconstruction filters and dispersion compensation method.
Quality testing and certifications
MMConex Phantoms are registered with ANVISA under nº 81913890001.
